Complete Used KRONES PET LINE for Carbonated Soft Drinks with Capacity of 14,000 BPH, based on 250ml and 12,000 BHR based on 500ml, 1,500ml and 2,000ml including HP Air Compressor, Flush Pasteurizer, APV Plate Heat Exchanger, Molds Chiller and Palletizer.

YOM: 2005 – 2009 – 2013 – 2024

Neck PCO 28 mm type 1881

• Current capacity & formats :
– 0.5 LTRS x 12,000 BPH
– 1.5 LTRS x 12,000 BPH
– 2.0 LTRS x 12,000 BPH

• Current Preforms :
– 0.5 LTRS : 15,9 grams
– 1.5 LTRS : 34,5 grams
– 2.0 LTRS : 38,0 grams

• Products : CSD with 8,0 g/l CO2 and carbonated water

• Current final packaging : pack 3 x 2 with or without handle

• Current pallets dimensions :
– 4 x ¼ plastic pallet (600 x 400 mm)
– 2 x half-size pallet (800 x 600 mm)
– Euro pallet (1.200 x 800 mm)

• PLC SIEMENS S7 – 300 & DANFOSS VLT
TANNER Preform feeding unit :
– Box Turner
– Hopper
– Elevator
– Preform conveyors
– Chute

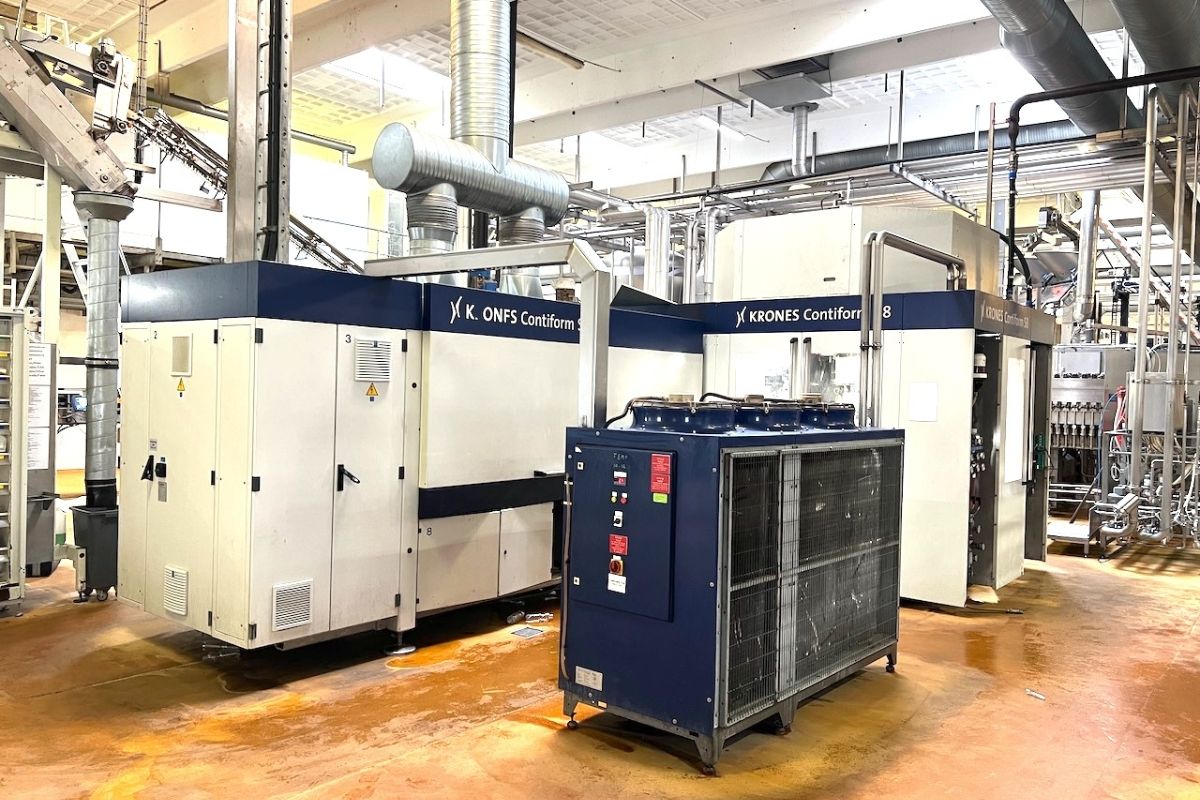

2) KRONES Blow-moulder
Type Contiform S08 with 8 cavities
Chiller for moulds from KKT KRAUS model KLC50N (refrigerant : R407C)

3) KRONES Empty bottle transfer By rotary chain with 117 stations Neck handling for all formats

4) KRONES Filling Bloc
Type Mecafill VKP-PET with Neck handling 80 valves – Pitch 113 mm
Capper with 10 heads Pick & Place (1881 short cap) NEUMO valve block with automatic butterfly valves

5) Cap feeding unit :
– Box turner
– Hopper
– Elevator
– Double chutes to capper

6) KRONES FBI (Full Bottle Inspector)
Type Checkmat level & cap controls with gamma
+ Ejector

7) KRONES Full Bottle Conveyors With accumulation table and in-liner
Air dryer at entrance of the labeller

8) KRONES Labeler
Type Unimodul 600-15
Contiroll with 2 stations for rolls of label Wrap-around label with hot glue

9) DOMINO Laser coding unit Model D320I from 2024

10) KRONES shrink-wrapper Type Variopac FS-30
6-lane infeed on 2 lanes (3×2) Transparent Foil only

11) KRONES pack Conveyors
With 2 pack labelers DOMINO T50 from 2009

12) COMAG Handle applicators Model H40/2 – On 2 lanes

13) KRONES Palletizer
Type Pressant infeed on 2 lanes
Loading modul model ROBOT 3A with 2 heads : 1 for pack & 1 for bottles to be placed in plastic racks
Including inter-layer applicator and pallet buffer 3 pallets formats :
– 4 x ¼ plastic pallet (600 x 400 mm)
– 2 x half-size pallet (800 x 600 mm)
– Euro pallet (1.200 x 800 mm)

14) OCTOPUS Pallet stretch-foiler n°1
Currently used for half-pallet but can also do full pallets

15) Pallet binder
Use only with plastic racks
Including device to put 2 half pallets on 1 mother pallet

16) ROBOPAC Pallet stretch-foiler n°2 Type GENESIS
Currently used for full pallets

17) Pallet conveyors
Including pallet labeler, pallet trolley and buffer conveyors

18) KRONES Mixer
Type MSF 24/2
With Anton Paar Brixmeter, CO2-meter & Velcorin Dosing Unit

19) KRONES Flash-pasteurizer Up to 25,000 LTRS/H
With 2 Buffer pressure tanks (6100 & 9000 Liters) and APV plate heat exchanger

20) KAESER HP air boosters
– 3 boosters model STCN1 from 2014
– 1 buffer tank of 8,000 LTRS each from 2014 (Working pressure : 11 bar & Test pressure : 16 Bar)
– 3 buffer tanks of 1,000 LTRS each from 2013 (Working pressure: 45 bar – Test pressure : 64 Bar)

The Line is still in operation.

Available in May 2025.

Location: Europe

For more information, contact us.
